Jamdoor1

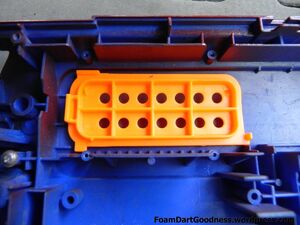

The Raider Rapid Fire CS-35's jam door.

A jam door, also known as an access door, is a standard feature of clip system or electronic blasters. The jam door is a piece that slides back or hinges open, allowing slight access to the internals in case of a jam. If a dart is jammed in the chamber, the user may remove it from there.

Details[]

The jam door is usually orange (in some blasters black, or in the Hail-Fire's case, clear) with holes scattered around it. Flip-open doors are made up of one piece held in by a metal bar, and can flip up/slide open to allow access to the chamber. Slide-open doors usually use a friction ridge to stay closed, but sometimes rely on the blaster's priming system. In breech blasters, if the door is left open while the blaster is being primed, it will close automatically as the bolt is moved forward. Some blasters may have more than one jam door, such as the CrossBolt. Normally, a blaster cannot fire without completely closing the jam door, however, there are many exceptions; the SlingFire, Flyte CS-10, Phoenix CS-6, Turbine CS-18 are examples of blasters that can fire with the jam door open.

Modification[]

Modders sometimes choose to remove the jam door for even easier access to the chamber, other times, the jam door is not only removed, but is cut out in a way that will allow for darts to be loaded into the cut-out section.

Mechanical locks associated with the jam door (such as a lock that prevents the opening of one if the bolt is not in the rear) are often removed to allow the jam door to be opened at any time. Electronic locks that are linked to the jam door that prevent flywheel blasters from firing are usually also removed.

Unjamming button[]

An unjamming button, also known as a jam release button or jam release switch, is a component on some blasters that aids in unjamming.

On some blasters, unjamming buttons release the bolt sled's mechanical lock, even after the blaster is primed. This allows the bolt sled to be moved back for clearing jams. As such, these types of buttons are also referred to as prime-lock override buttons. Some blasters such as the N-Strike Modulus LongStrike have an unjamming button that disengages the ratcheting intermediate-prime-lock, which frees the priming handle to be moved in case it got stuck during priming.

Since unlocking the bolt sled prematurely may cause double feeding and more jams, these buttons may only be allowed to be engaged with a thin object such as a pen or paper clip. However, on blasters such as RIVAL blasters, feeding more than one round into the blaster usually does not cause jams, and so users may purposely use the unjamming button to feed several projectiles, in what is known as "shotgun loading", since this permits the blaster to fire more than one projectile at once from the same barrel, provided it does not jam. The velocity is reduced due to the blaster having to fire several projectiles.

On Vortex blasters, there is a jam release switch either on the side or back of the blaster that ejects a chambered XLR Disc to clear a jam.

A blaster may contain both a jam door and an unjamming button. The unjamming button may supplement the jam door by permitting the user to move the bolt sled back, thereby allowing them to clear a jam through the jam door.

If a blaster is modified so that the trigger lock is disabled, an unjamming button can be used to unlock the bolt sled and deprime the blaster by pulling the trigger and easing the bolt sled forward. However, usually the lock for the unjamming button is removed anyway during modification.

Trivia[]

  • Users of the Vortex blasters generally experience less jams than the typical N-Strike blasters. N-Strike Elite blasters also generally jam less than its predecessor line due to improved internals.
  • Depending on the shape of the jam door and bolt sled, with enough skill, a user could possibly load a dart into the chamber through the door's opening without removing the blasters' clip. However, this is very difficult to do and not very practical; a more plausible use would be to load darts into a blaster's clip mid-battle through the jam door, easily doable on some flywheel blasters.
    • The CrossBolt's rear jam door is large enough that the user can load darts into the clip without removing it, similar to internal clips.
